近日西安交通大學發表文獻《Boosting the charge injection of polymer electrets for light-stimulated artificial synaptic transistors》，文獻中采用LUYOR-3405可調光強度的臺式紫外線燈進行紫外輻照。

文獻摘要：

增強光刺激人工突觸晶體管的聚合物駐極體的電荷注入

半導體/聚合物駐極體結構廣泛應用于有機場效應晶體管、存儲器和人工突觸。由于能級不同，激子分離效率和從半導體到絕緣聚合物的電荷注入仍然存在挑戰。在這項工作中，我們提出了一種有效的方法來提高電荷注入效率，從而改善光學響應，通過在p-型半導體和駐極體層。例如，40 nm 2,7-二辛基[1]苯并噻吩并[3,2- b ]苯并噻吩 (C 8 -BTBT)/2 nm C 8 -PTCDI/聚合物駐極體基突觸晶體管表現出 5.6 × 的優異光敏度10 6與其他晶體管相比。 C 8 -PTCDI不僅充當電子受體以改善激子解離并增加光生電荷濃度，而且還在通道中提供電子傳輸層以將電子注入PS中。為了驗證其普適性，還制備了40 nm C 8 -BTBT/2 nm [6,6]-苯基-C71-丁酸甲酯（PC 71 BM）/聚合物駐極體突觸晶體管，光敏度高達1.4 × 10 6 . 此外，利用C 8 -BTBT/C 8 -PTCDI/聚合物駐極體的配置，制造了光刺激人工突觸晶體管，并將其用于“小狗”圖片學習、神經網絡計算和圖像識別任務（識別率高達至 98.3%）。

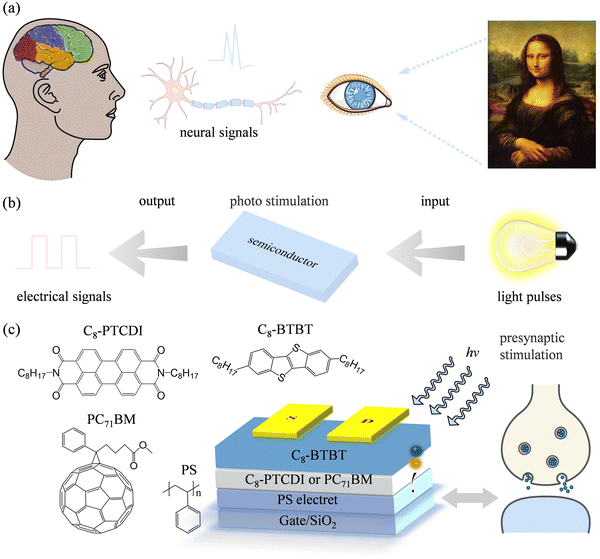

Semiconductor/polymer electret constructions are extensively utilized in organic field-effect transistors, memories, and artificial synapses. The challenge of exciton separation efficiency and charge injection from semiconductors into insulating polymers persist due to their disparate energy levels. In this work, we propose an effective method to enhance charge injection efficiency, thereby improving the optical response, by incorporating N,N′-dioctyl-3,4,9,10-perylenetetracarboxylic diimide (C8-PTCDI) between the p-type semiconductor and the electret layer. For example, the 40 nm 2,7-diocty[1]benzothieno[3,2-b]benzothiophene (C8-BTBT)/2 nm C8-PTCDI/polymer electret-based synaptic transistors show a superior photosensitivity of 5.6 × 106, compared with other transistors. C8-PTCDI not only acts as an electron acceptor to improve the exciton dissociation and increase the photo-induced charge concentration, but also provides an electron transport layer in the channel for electron injection into PS. To verify its universality, 40 nm C8-BTBT/2 nm [6,6]-phenyl-C71-butyric acid methyl ester (PC71BM)/polymer electret synaptic transistors were also prepared with a photosensitivity of up to 1.4 × 106. Moreover, utilizing a configuration of C8-BTBT/C8-PTCDI/polymer electrets, light-stimulated artificial synaptic transistors were fabricated and employed in “pup” picture learning, neural network computing and image recognition tasks (achieving a recognition rate of up to 98.3%).

Light illumination

The light source was provided by using a portable LUYOR-3405 UV LAMP with adjustable light intensity. The solar power meter (model LH-122) used in this work measures light intensity with a spectral response range of 400–1100 nm and a resolution of 1 μW cm?2.

Journal of Materials Chemistry C ( IF 5.7 )

Pub Date : 2024-08-14 ,

文獻地址：DOI: 10.1039/d4tc02706j
